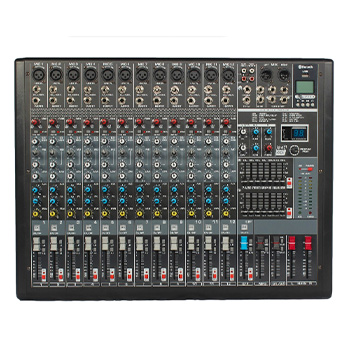

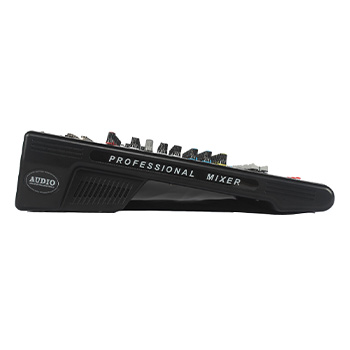

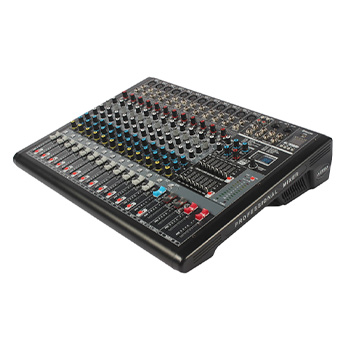

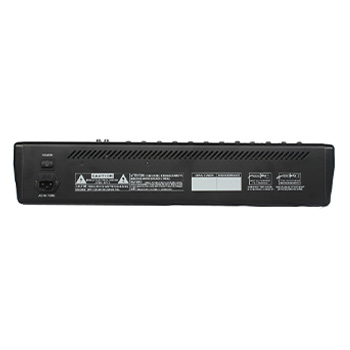

Model number: RLX12

Technical parameters:

Microphone input :30dBu                       Microphone input: > 1KΩ

Line input: 21dBu                                   Line output: > 10 Kω

All other inputs: 22dBu                           Main output: > 100Ω

Rated output                                           equalization

Main output: +4dBu                                mono balance

All other output: +4dBu                           High frequency: 12KHz

Maximum output: 20dBu                         High school: 2.5KHz

Frequency response                            Low medium: 400Hz

Microphone to main output: +0, -1dB, < 20Hz to 40KHz

Low frequency: 80Hz Plus 0, minus 3dB, < 20Hz to 60KHz

Special functions:

(1) 12 mono channel inputs

(2) Microphone input equipped with premium +48v fantasy power switch

(3) Built-in professional digital (DSP) effector with level light pedal switch and double seven-stage graphic equalizer

(4) High-precision three-color level display, can accurately control the output level

(5) 60mm high precision long life straight slip attenuator

(6) MP3 player with USB input

(7) Two sets of AUX auxiliary output

(8) The circuit board adopts the double-sided SMT technology, so that the performance is stable and reliable

(9) Low noise pre-amplification, with strong anti-interference ability

(10) So awl are with silent,AFL,AFL light
